Width Options                                                                                     12'' - no maximum                    12'' - no maximum


Weight Options                                                                                    2000 lbs per linear foot            3000 lbs per linear foot


Line Speed                                                                                            Custom                                       Custom


Steel Construction                                                                               YES                                               YES


HI-LOAD Steel Track                                                                            YES                                               YES


Heavy Duty Chain Protector, powder-coated safety yellow.        YES                                                YES


Optional Finger Protection Available                                                YES                                                YES

ES-3S750

es series transport conveyors

ES-2S500

I.T. Equipment's Newest Conveyor Line!

Modularity


The center drive is free standing and may be moved from one location to another for splicing to other track sections.

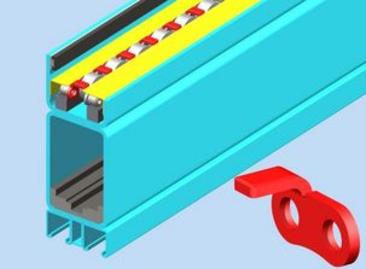

ESP-3S750
(Optional Finger Protection)
(shown in red for clarity)

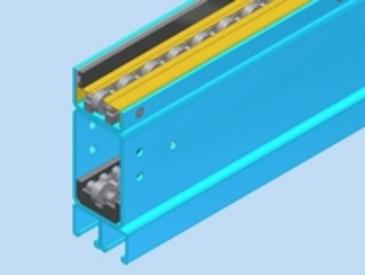

ES-3S750
Standard Version

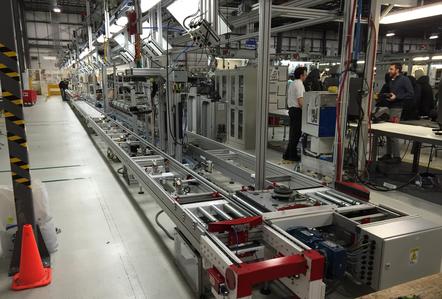

ES Series Transport Conveyors

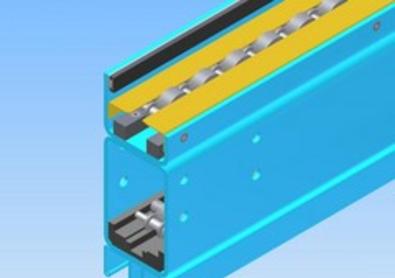

ES-2S500

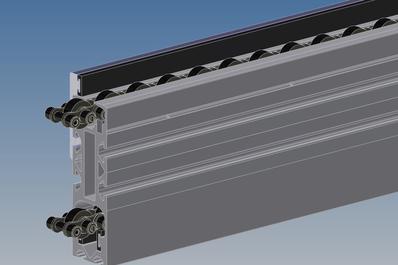

Wheel Flight Non-Synchronous

A steel, carrier roller chain, 1-1/4'' pitch, features side rollers made of steel and plastic.  They are located every pitch on alternating sides of chain.  Every third plastic roller is a brake roller, which provides quicker pallet start up.  This brake roller chain is pre-lubricated for cleaner operation and less maintenance.

Steel Conveyors With An Emphasis On Safety!


 1.574.936.3028



​



Sprockets

Steel drive and idler sprockets have hardened teeth.  Idlers have sealed bearing.
