Module X

Track

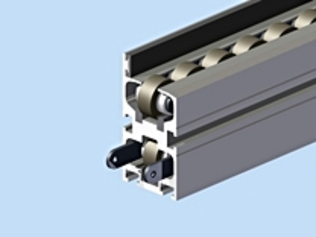

Chain track is an anodized, extruded, aluminum material.  The plastic outboard chain rollers ride quietly on steel inserts which are firmly secured in the aluminum extrusion.

Chain


A quiet running 1-1/2" pitch chain for Module X features rollers constructed of a special grade of engineered plastic.  The chain is driven at a low rate of speed due to the ability of the Module X chain to move pallets at 2-1/2 times the

Safe Operation

Chain side rollers are covered by the extrusion.  Only the friction-driven, large rollers are exposed, thus supporting the work piece pallets.

module x transport conveyor

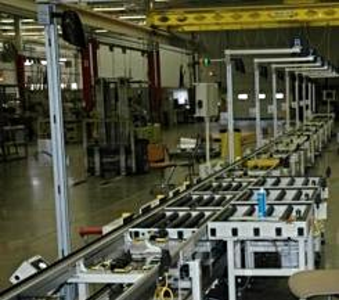

Free Flow Transporter Line


Modul X is a free flow transporter system featuring double plus or carrier chain.  The larger center chain rollers or X2.5 (double plus) chain support work piece pallets and are friction driven by smaller side rollers.  Pallets resting on the center rollers of x2.5 lines are moved at 2-1/2 times chain speed.

Sprockets


Only two sprockets are used in constructing a Module X line.  These engage the plastic side rollers of the transporter chain and are located in the drive module.  A.S.A. steel sprockets serve this purpose.  These sprockets provide a long service life.

Drive Package

SMED (Side Mounted End Drives) are standard.  Screw type chain tensioners are not required.
